A40-10S V4G kv1600 + 6,7:1 PG from Hacker Motor 10109537

A40-10S V4G kv1600 + 6,7:1 PG from Hacker Motor 10109537

This A40 gear drive is equipped with the 8-pole version of the A40-S motor, which has proven itself thousands of times over. The high-torque, high-speed external rotor in combination with the efficient 6.7:1 planetary gearbox has been specially developed for larger electric gliders up to approx. 8 kg take-off weight. Thanks to the perfect coordination of motor and gearbox, this power pack can drive propellers up to 23 inches efficiently and powerfully. It is a very robust and reliable system that works reliably even under extreme conditions and high loads.

This weight-optimised high-end motor with a weight of only 247g fits perfectly in gliders up to 8 kg.

Scope of delivery

1x A40-10S V4G kv1600 + 6,7:1 PG and manual.

Specifications
max. power range [W] (max.15 sec.)	1500
Poles	8
Turns	10
Idle current (I0) at 8.4V [A]	2,75
Internal resistance (Ri) [Ohm]	0,012
Gear reducing	6,7:1
Recommended timing [°]	15 - 20
Switching Frequency [kHz]	8
Controller recommendation [A] (depending on setup)	70 - 90
Idle speed per volt (kv) without gearbox	1600

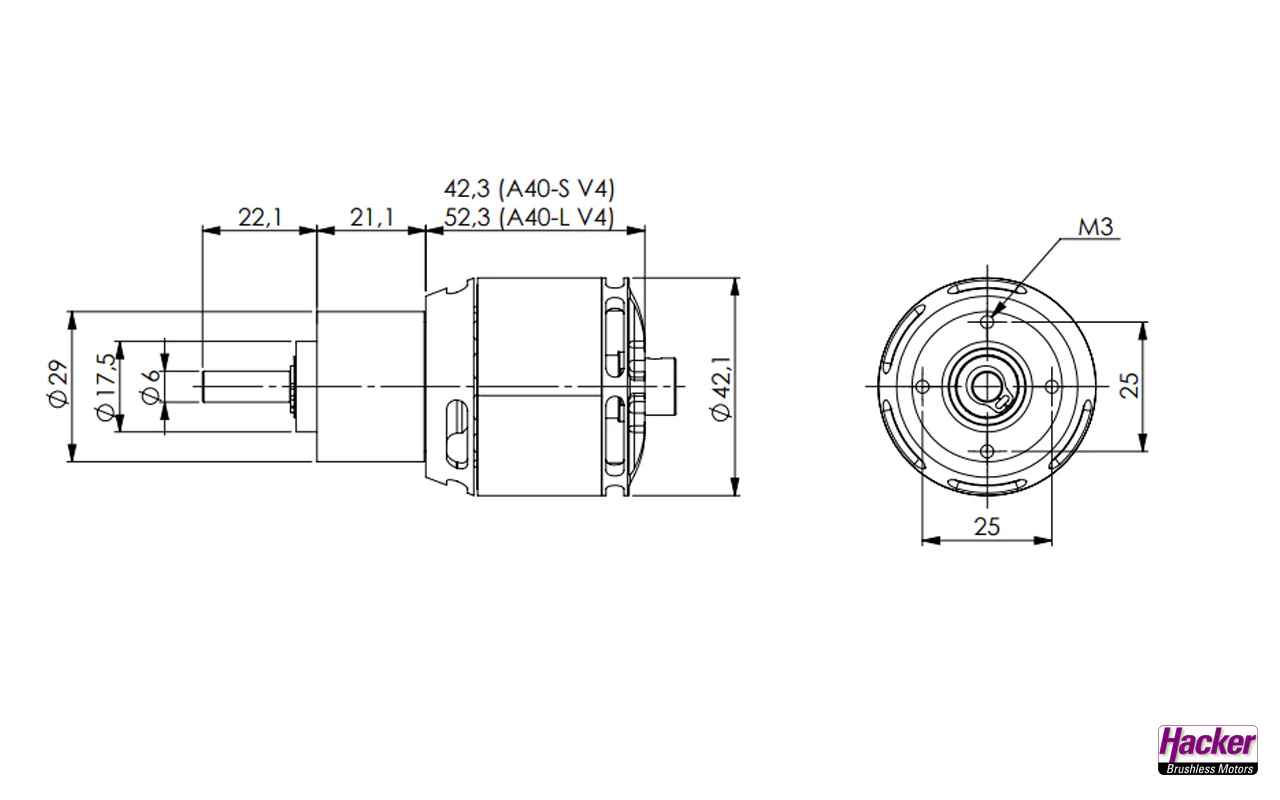

Dimensions and weight
Weight [g]	247
Length [mm]/[in]	74
Outer diameter [mm]/[in]	41,7
Shaft diameter [mm]/[in]	6
Delivery contents
Prop Adapter	No
Mounting cross	No
Gold plug mm (soldered)	No
Gold plug mm (recommended)	4
Backmount mountable	No
Front mountable	Yes

Drive recommendation

A40-10S V4G kv1600 + 6,7:1 PG
Item no.: 10109537
Propeller	RFM 20x13	RFM 23x12	Falcon 22x12	Falcon 23x13	Falcon 21x13
LiPo	6S	6S	6S	6S	6S
Voltage [V]	22,5	22,5	22,5	22,5	22,5
Current [A]	51,5	56,9	43,8	57,8	44,9
Power [W]	1159	1281	986	1303	1011
RPM	5102	5052	5147	5055	5145
Controller [A]	70-90	70-90	70-90	70-90	70-90
Timing [°]	15-20	15-20	15-20	15-20	15-20
